12V/24V/36V/48V Waterproof LED Power Supply - 360W Output, CE FCC Certified, IP67 Rated, Reliable Outdoor Lighting LED Driver

ANEN Enterprise Limited
Contact Now
    Buy cheap 12V/24V/36V/48V Waterproof LED Power Supply - 360W Output, CE FCC Certified, IP67 Rated, Reliable Outdoor Lighting LED Driver from wholesalers

    Buy cheap 12V/24V/36V/48V Waterproof LED Power Supply - 360W Output, CE FCC Certified, IP67 Rated, Reliable Outdoor Lighting LED Driver from wholesalers
    • Buy cheap 12V/24V/36V/48V Waterproof LED Power Supply - 360W Output, CE FCC Certified, IP67 Rated, Reliable Outdoor Lighting LED Driver from wholesalers

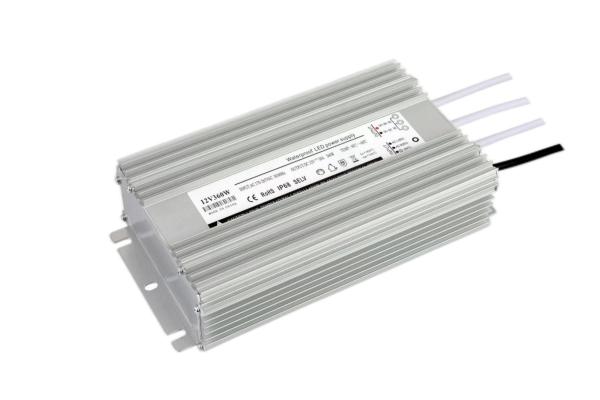

    12V/24V/36V/48V Waterproof LED Power Supply - 360W Output, CE FCC Certified, IP67 Rated, Reliable Outdoor Lighting LED Driver

    Ask Lasest Price
    Brand Name : ANENpower
    Model Number : APL360W
    Certification : UL/CUL, FCC, CE, GS, TUV, CB, RCM, SAA, PSE, KC, UKCA
    Price : Please contact our Sales
    Payment Terms : 50% deposit, 50% before dispatch
    Supply Ability : 500,000.00pcs/month
    Delivery Time : 18~25 working days after receiving the deposit
    • Product Details
    • Company Profile

    12V/24V/36V/48V Waterproof LED Power Supply - 360W Output, CE FCC Certified, IP67 Rated, Reliable Outdoor Lighting LED Driver

    12V/24V/36V/48V Waterproof LED Power Supply - 360W Output, CE FCC Certified, IP67 Rated, Reliable Outdoor Lighting LED Driver


    The 12V/24V/36V/48V waterproof LED power supply offers a powerful 360W output, making it the perfect solution for outdoor lighting applications. Designed to provide consistent and reliable performance, it supports multiple voltage options to accommodate a wide range of LED systems, ensuring seamless compatibility for architectural lighting, garden fixtures, and streetlights.


    With an IP67 rating, this LED driver is built to withstand harsh environmental conditions, offering superior protection against dust, water, and extreme weather. Certified by CE and FCC, it adheres to international safety and quality standards, providing peace of mind for long-term use. The durable aluminum casing enhances heat dissipation, ensuring the longevity of both the power supply and connected LED devices.


    This power supply is engineered for high efficiency, reducing energy consumption while delivering stable voltage output for flicker-free LED performance. Compact and easy to install, it is ideal for residential and commercial outdoor lighting projects, offering a reliable and durable solution for all your lighting needs.


    MODEL DETAIL SPEC.APL360W-12030000APL360W-24015000APL360W-36010000APL360W-48075000
    INPUTInput Voltage:100-240VAC/200-240VAC
    Input Frequency:50/60Hz
    Inrush Current:65A/230VAC at full load
    AC Current:2.27A/115VAC 1.14A/230VAC
    Leakage Current:0.25mA/240VAC
    Efficiency:88%
    OUTPUTDC Voltage:12V24V36V48V
    Rated Current:25A22.5A8.33A6.25A
    Rated Power:360W
    Voltage Tolerance:±5.0%
    Ripple and Noise:120mVp-p240mVp-p360mVp-p480mVp-p
    Line Regulation:±3%
    Load Regulation:±5%
    Setup, Rise, Hold Up time:1s, 10ms/60ms 230VAC 1000ms, 1ms/25ms 115VAC at full load
    ENVIRONMENTALOperating Temperature:-20 ~ +50 (Refer to "Derating Curve")
    Storage Temp:-40 ~ 85
    Storage Humidity:20 ~ 95% RH
    Working Humidity:20 ~ 95% RH non-condensing
    PROTECTIONOver Load:Above 105%-130% rated output power
    Protection type: Hiccup mode, recovers automatically after fault condition is removed
    Over Voltage:12V:13.8 ~ 16.2V 24V : 27.6 ~ 32.4V
    36V:41.4 ~ 48.6V 48V:55.2~64.8V
    Protection type: Shut down o/p voltage, re-power on to recover
    Over Temperature:Shut down o/p voltage, re-power on to recover
    SAFETY & EMCSafety Regulations:EN61347-2-13:2014+A1:2017,EN61347-1:2015;EN62493:2015
    Withstand Voltage:I/P-O/P:3.75KVAC
    HarmonicEN61000-3-2 Class C EN61000-3-3
    EMI:Compliance to EN55015
    EMS:compliance to 61547:2009
    OTHERMTBF:200,000 Hours Minimum at Full Load at 25 Ambient
    Size:230*127*58mm
    Weight:3000g / pcs
    Packaging:5PCS/CTN
