50W Super Thin 12V 4.16A LED Lighting Driver Converter 24V 2.08A Switching Power Supply

    Buy cheap 50W Super Thin 12V 4.16A LED Lighting Driver Converter 24V 2.08A Switching Power Supply from wholesalers

    Buy cheap 50W Super Thin 12V 4.16A LED Lighting Driver Converter 24V 2.08A Switching Power Supply from wholesalers
    • Buy cheap 50W Super Thin 12V 4.16A LED Lighting Driver Converter 24V 2.08A Switching Power Supply from wholesalers

    50W Super Thin 12V 4.16A LED Lighting Driver Converter 24V 2.08A Switching Power Supply

    Ask Lasest Price
    Brand Name : ANENpower
    Model Number : APL50S
    Certification : UL/CUL, FCC, CE, GS, TUV, CB, RCM, SAA, PSE, KC, UKCA
    Price : Please contact our Sales
    Payment Terms : 50% deposit, 50% before dispatch
    Supply Ability : 500,000.00pcs/month
    Delivery Time : 18~25 working days after receiving the deposit
    • Product Details
    • Company Profile

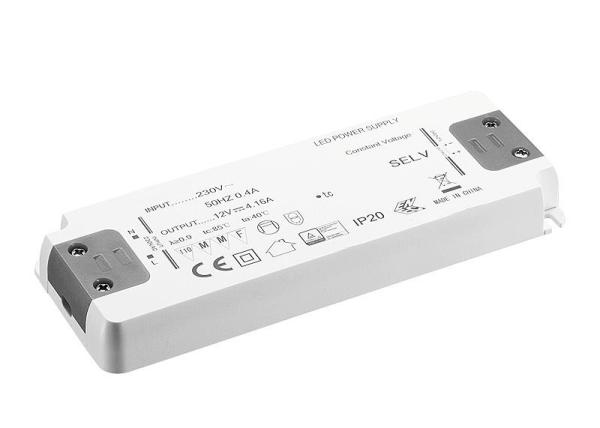

    50W Super Thin 12V 4.16A LED Lighting Driver Converter 24V 2.08A Switching Power Supply

    50W Super Thin 12V 4.16A LED Lighting Driver Converter 24V 2.08A Switching Power Supply


    APL50S LED power supply emphasizes its small size, easy installation, and comprehensive safety certification.


    Due to its compact design, this APL50S power supply is ideal for installation in tight spaces, such as within narrow light fixtures or compact home decor. Its ultra-thin profile enables it to be easily installed in hard-to-reach locations, providing greater flexibility for lighting designers and manufacturers.


    In addition, this APL50S power supply has passed various safety certifications, including CE, RoHS, and others, ensuring that it meets international safety standards. This means that whether you are using it in a home or commercial environment, this power supply can provide reliable performance and safety assurance.


    In summary, this APL50S is an excellent choice for LED power, with its small design and comprehensive safety certification making it the ideal choice for lighting manufacturers and designers.


    - Universal Input: 90-265V AC 50/60Hz
    - RoHS Compliance
    - EMI Standard EN55015
    - Safety Standard: EN61347-1, EN61347-2-13, UL8750
    - Inrush current<65A AC230V/50Hz - High efficiency & low power consumption
    - Short Circuit, Over Current and Over Voltage Protection
    - Over temperature protection
    - 100% full load burn-in test
    - Auto restart after remove of fault conditions
    - IP20 protection rating


    MODEL DETAIL SPEC.

    APL50S

    -1204160

    APL50S

    -2402080

    APL50S

    -3601380

    APL50S

    -4801050

    INPUTInput Voltage:100-240VAC/ 200-240VAC
    Input Frequency:50-60Hz
    Inrush Current:65 Amps max. at 230VAC/50Hz,full load
    AC Current:0.17A/230VAC
    Leakage Current:0.25mA/240VAC
    Efficiency:88%88%88%88%
    OUTPUTDC Voltage:12V24V36V48V
    Rated Current:4.16A2080mA1380mA1050mA
    Rated Power:50W50W50W50W
    Voltage Tolerance:±5.0%±5.0%±5.0%±5.0%
    Ripple and Noise:120mVp-p240mVp-p360mVp-p480mVp-p
    Line Regulation:±3%
    Load Regulation:±5%
    Setup, Rise, Hold Up time:1s, 10ms/60ms 230VAC 1000ms, 1ms/25ms 115VAC at full load
    ENVIRONMENTALOperating Temperature:-20 ~ +50 (Refer to "Derating Curve")
    Storage Temp:-40 ~ 85
    Storage Humidity:20 ~ 95% RH
    Working Humidity:20 ~ 95% RH non-condensing
    PROTECTIONOver Load:Above 105%-130% rated output power
    Protection type: Hiccup mode, recovers automatically after fault condition is removed
    Over Voltage:12V:13.8 ~ 16.2V 24V:27.6 ~ 32.4V 36V:41.4~48.6V 48V:55.2~64.8V
    Protection type: Shut down o/p voltage, re-power on to recover
    Over Temperature:Shut down o/p voltage, re-power on to recover
    SAFETY & EMCSafety Regulations:EN61347-2-13:2014+A1:2017,EN61347-1:2015;EN62493:2015
    Withstand Voltage:I/P-O/P:3750KVAC
    HarmonicEN61000-3-2 Class C EN61000-3-3
    EMI:Compliance to EN55015
    EMS:compliance to 61547:2009
    OTHERMTBF:200,000 Hours Minimum at Full Load at 25 Ambient
    Size:160*58*18mm
    Weight:200g / pcs
    Packaging:100PCS/CTN,37.5*28.5*24cm

    Quality 50W Super Thin 12V 4.16A LED Lighting Driver Converter 24V 2.08A Switching Power Supply for sale
