    12V/24V/36V/48V Waterproof LED Power Supply - 200W Output, IP67 Rated, Reliable Outdoor Lighting LED Driver

    Ask Lasest Price
    Brand Name : ANENpower
    Model Number : APL200W
    Certification : UL/CUL, FCC, CE, GS, TUV, CB, RCM, SAA, PSE, KC, UKCA
    Price : Please contact our Sales
    Payment Terms : 50% deposit, 50% before dispatch
    Supply Ability : 500,000.00pcs/month
    Delivery Time : 18~25 working days after receiving the deposit
    • Product Details
    • Company Profile

    12V/24V/36V/48V Waterproof LED Power Supply - 200W Output, IP67 Rated, Reliable Outdoor Lighting LED Driver

    12V/24V/36V/48V Waterproof LED Power Supply - 200W Output, IP67 Rated, Reliable Outdoor Lighting LED Driver

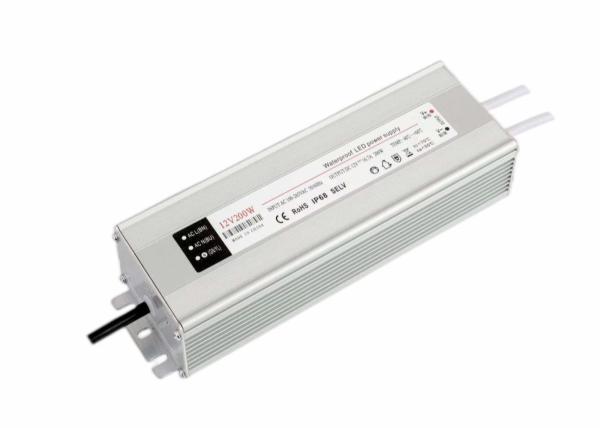

    Our 12V/24V/36V/48V Waterproof LED Power Supply is designed to provide reliable power for outdoor lighting applications, featuring a 200W output and an IP67 waterproof rating. Whether for street lighting, garden illumination, or industrial use, this LED driver ensures consistent and stable performance, even in harsh weather conditions.


    Built to withstand the toughest environments, this power supply is fully protected against dust and water, making it ideal for outdoor installations. The IP67 rating ensures long-lasting durability, so your LED lighting systems can perform continuously, regardless of rain, snow, or dust.


    With multiple voltage options and a 200W output, this LED power supply is versatile enough to support a wide range of lighting needs. It delivers reliable power to high-performance LED fixtures, ensuring smooth operation and extended lifespan for any outdoor lighting project.


    MODEL DETAIL SPEC.APL200W-12016660APL200W-2408330APL200W-3605550APL200W-4804160
    INPUTInput Voltage:100-240VAC/200-240VAC
    Input Frequency:50/60Hz
    Inrush Current:65A/230VAC at full load
    AC Current:2.27A/115VAC 1.14A/230VAC
    Leakage Current:0.25mA/240VAC
    Efficiency:88%
    OUTPUTDC Voltage:12V24V36V48V
    Rated Current:16.66A8.33A5.55A4.16A
    Rated Power:200W
    Voltage Tolerance:±5.0%
    Ripple and Noise:120mVp-p240mVp-p360mVp-p480mVp-p
    Line Regulation:±3%
    Load Regulation:±5%
    Setup, Rise, Hold Up time:1s, 10ms/60ms 230VAC 1000ms, 1ms/25ms 115VAC at full load
    ENVIRONMENTALOperating Temperature:-20 ~ +50 (Refer to "Derating Curve")
    Storage Temp:-40 ~ 85
    Storage Humidity:20 ~ 95% RH
    Working Humidity:20 ~ 95% RH non-condensing
    PROTECTIONOver Load:Above 105%-130% rated output power
    Protection type: Hiccup mode, recovers automatically after fault condition is removed
    Over Voltage:12V:13.8 ~ 16.2V 24V : 27.6 ~ 32.4V
    36V:41.4 ~ 48.6V 48V:55.2~64.8V
    Protection type: Shut down o/p voltage, re-power on to recover
    Over Temperature:Shut down o/p voltage, re-power on to recover
    SAFETY & EMCSafety Regulations:EN61347-2-13:2014+A1:2017,EN61347-1:2015;EN62493:2015
    Withstand Voltage:I/P-O/P:3.75KVAC
    HarmonicEN61000-3-2 Class C EN61000-3-3
    EMI:Compliance to EN55015
    EMS:compliance to 61547:2009
    OTHERMTBF:200,000 Hours Minimum at Full Load at 25 Ambient
    Size:220*70*42mm
    Weight:2600g / pcs
    Packaging:5PCS/CTN
