EN/IEC 60601 certified 36W Max 12V Medical AC Adapter 36V Removeable Plug Switching Power Supply 24V Transformer

Ask Lasest Price
Brand Name :	ANENpower
Model Number :	APM24H
Certification :	UL/cUL 60601-1, TUV EN 60601-1, CB IEC 60601-1, FCC, CE, PSE, UKCA
Price :	Please contact our Sales
Payment Terms :	50% deposit, 50% before dispatch
Supply Ability :	500,000.00pcs/month
Delivery Time :	18~25 working days after receiving the deposit

Add to Cart

Product Details
Company Profile

EN/IEC 60601 certified 36W Max 12V Medical AC Adapter 36V Removeable Plug Switching Power Supply 24V Transformer

EN/IEC 60601 certified 36W Max 12V Medical AC Adapter 36V Removeable Plug Switching Power Supply 24V Transformer

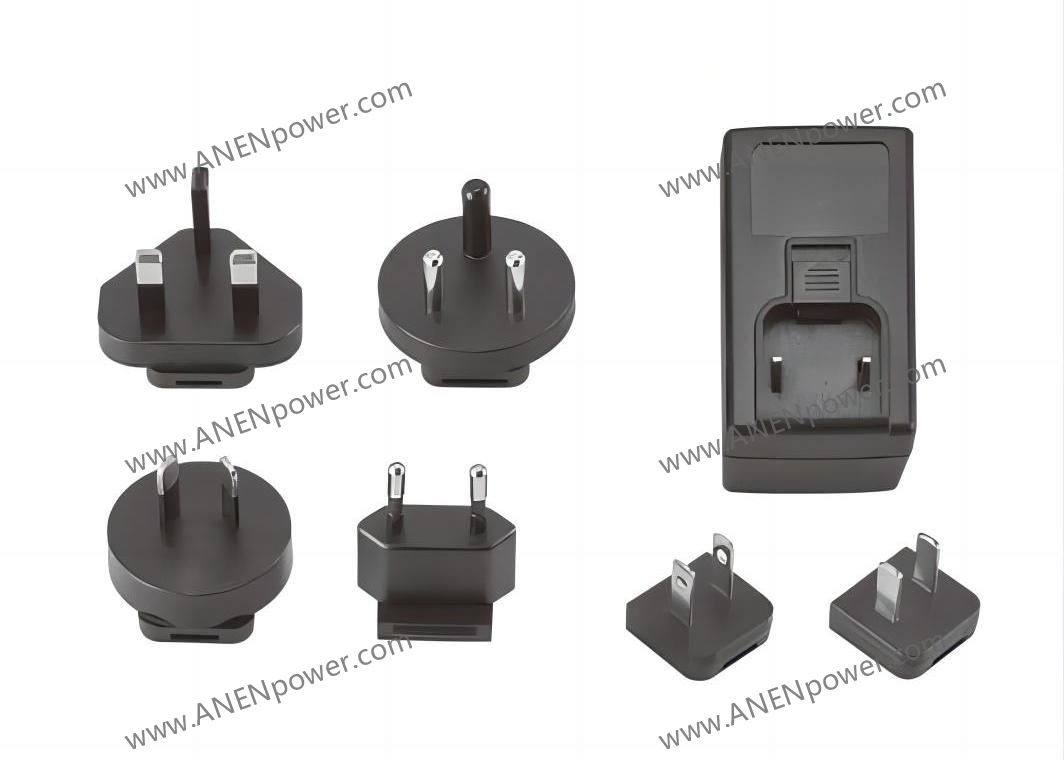

The APM24H series is a family of wall mount Medical AC adapters (wall adapters/wall warts) equipped with Interchangeable plug that are designed to offer 36W continuous output power with a single output of either 5V, 12V, or 24V (coming with a universal input of 100~240 Vac).

APM24H are burn-in test conducted and offer class II operation, low leakage current, over load protection (OLP), crowbar mode over voltage protection (OVP), and 2 x MOPP (Means of Patient Protection) classification to ensure the safety of the patient, caregiver, and device to which the power supply is applied. The series owns comprehensive protection designs along with all-inclusive safety certifications and conforms to major international safety standards including IEC/EN 60601-1. All modules are fully compliant with the Level VI efficiency standard and RoHS directive.

APM24H switching power supplies are designed for medical applications and are ideal for breath detectors/testers, ECG, EEG, portable medical devices, medical tablets, digital blood pressure monitors, etc.

• Power Range: 16~36W

• Universal AC Input 100~240 VAC
• Frequency: 50~60Hz
• AC Plug type: U:USA, E:EU, K:UK, A: AU
• Output voltage available from 5~48 VDC

• 2 x MOPP Compliance, IEC/EN60601-1 Approval
• LPS Compliance
• Protections: Short circuit / Over voltage / Over current
• Energy Efficiency Level VI
• No Load Power Consumption ≤ 0.1W
• MTBF > 100,000 hours
• Safety: UL/cUL, UL60601, TUV EN60601, CB 60601, CE, FCC
• All models meet RoHS and WEEE
• Dimension(L x W x H): 73.6L x 42.9W x 32.5H (mm)
• Weight: 200g

Model NO.	MAX OUTPUT POWER	OUTPUT VOLTAGE	MIN LOAD	MAX LOAD	LOAD REGULATION	LINE REGULATION	RIPPLE & NOISE
APM24HA	16W	5-8V	0A	2.0A	±5%	±1%	100mV
APM24HB	20W	5-8V	0A	3.0A	±5%	±1%	100mV
APM24HC	18W	5-8V	0A	4.0A	±5%	±1%	100mV
APM24HD	24W	9-11V	0A	1.5A	±5%	±1%	250mV
APM24HE	27W	9-11V	0A	2.0A	±5%	±1%	250mV
APM24HF	20W	9-11V	0A	3.0A	±5%	±1%	250mV
APM24HG	30W	12-17V	0A	1.66A	±5%	±1%	250mV
APM24HH	24W	12-17V	0A	2.5A	±5%	±1%	250mV
APM24HJ	30W	18-24V	0A	1.33A	±5%	±1%	350mV
APM24HK	30W	18-24V	0A	1.66A	±5%	±1%	350mV
APM24HL	20W	36-48V	0A	0.55A	±5%	±1%	480mV
APM24HM	30W	36-48V	0A	0.83A	±5%	±1%	480mV
APM24HN	36W	12V	0A	3.0A	±5%	±1%	250mV
APM24HP	24W	12V	0A	2.0A	±5%	±1%	250mV
APM24HQ	36W	24V	0A	1.5A	±5%	±1%	350mV
