    SAA ETL Certified 60W IP67 Waterproof Switching Power Supply​ 12V LED Driver Transformer 24V Lighting AC DC Adapter

    Ask Lasest Price
    Brand Name : ANENpower
    Model Number : APL60W
    Certification : UL/CUL, FCC, CE, GS, TUV, CB, RCM, SAA, PSE, KC, UKCA
    Payment Terms : 50% deposit, 50% before dispatch
    Supply Ability : 500,000.00pcs/month
    Delivery Time : 18~25 working days after receiving the deposit
    Price : Please contact our Sales
    • Product Details
    • Company Profile

    SAA ETL Certified 60W IP67 Waterproof Switching Power Supply​ 12V LED Driver Transformer 24V Lighting AC DC Adapter

    SAA ETL Certified 60W IP67 Waterproof Switching Power Supply​ 12V LED Driver Transformer 24V Lighting AC DC Adapter

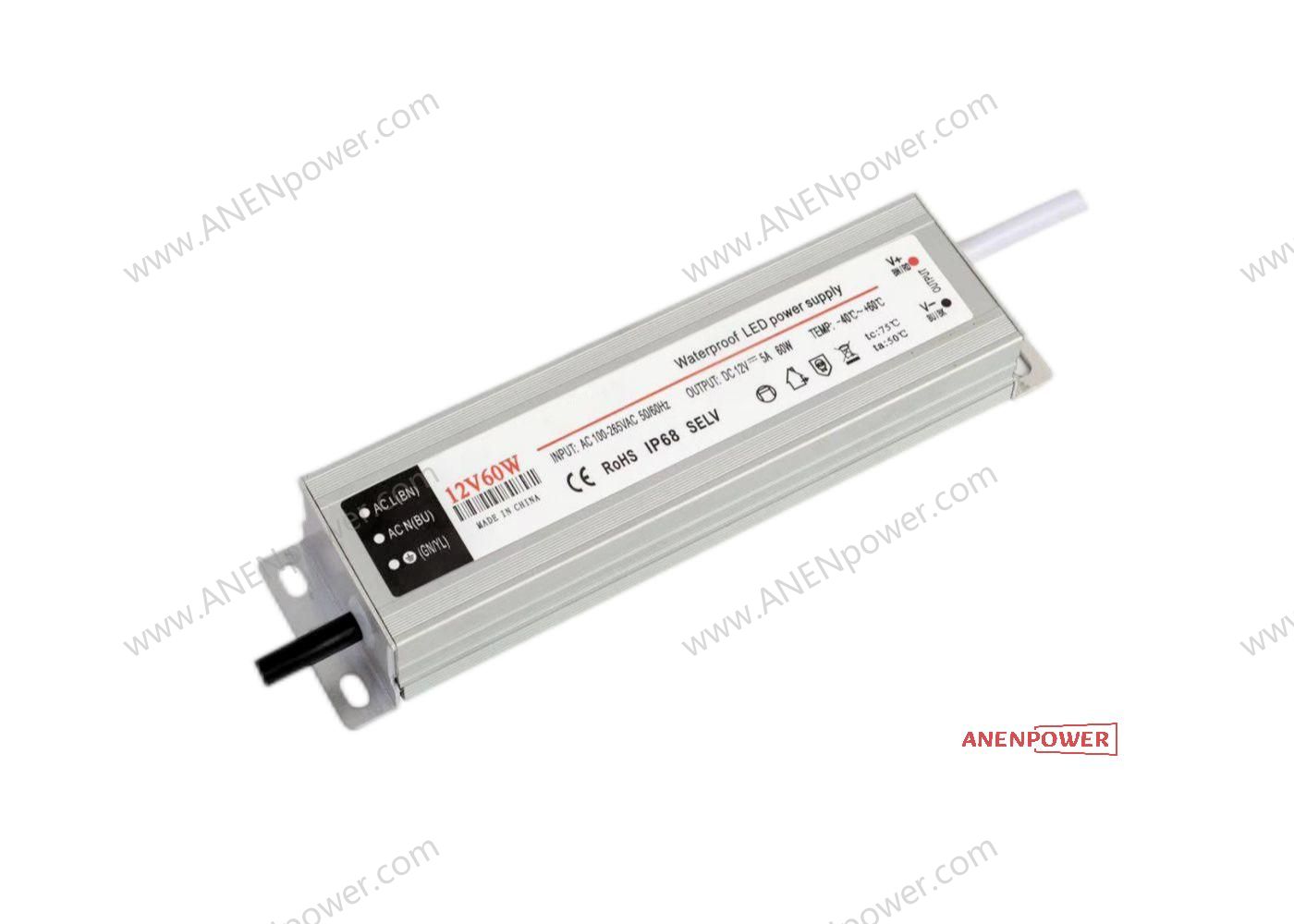

    The APL60W power supply is a device designed to provide reliable and safe power to LED lighting systems. This power supply is suitable for use in a wide range of indoor and outdoor environments, including harsh and wet conditions.


    This typically features a compact and robust design, with high efficiency and low power consumption. It can operate over a wide input voltage range and is capable of providing a stable output voltage and current to ensure optimal performance of the LED lighting system. Additionally, this power supply include various protection features such as overvoltage and short-circuit protection to prevent damage to the LED lighting system and ensure long-term reliability.


    Overall, APL60W LED power supply is an essential component for any LED lighting system that requires reliable and safe power in harsh and demanding environments.


    - Universal Input: 90-265V AC 50/60Hz
    - RoHS Compliance
    - EMI Standard EN55015
    - Safety Standard: EN61347-1, EN61347-2-13, UL8750
    - Inrush current<65A AC230V/50Hz

    - High efficiency & low power consumption
    - Short Circuit, Over Current and Over Voltage Protection
    - Over temperature protection
    - 100% full load burn-in test
    - Auto restart after remove of fault conditions
    - IP67 protection rating


    MODEL DETAIL SPEC.APL60W-1205000APL60W-2402500APL60W-3601660APL60W-4801250
    INPUTInput Voltage:100-240VAC/200-240VAC
    Input Frequency:50/60Hz
    Inrush Current:65A/230VAC at full load
    AC Current:0.68A/115VAC 0.34A/230VAC
    Leakage Current:0.25mA/240VAC
    Efficiency:88%
    OUTPUTDC Voltage:12V24V36V48V
    Rated Current:5000mA2500mA1660mA1250mA
    Rated Power:60W
    Voltage Tolerance:±5.0%
    Ripple and Noise:120mVp-p240mVp-p360mVp-p480mVp-p
    Line Regulation:±3%
    Load Regulation:±5%
    Setup, Rise, Hold Up time:1s, 10ms/60ms 230VAC 1000ms, 1ms/25ms 115VAC at full load
    ENVIRONMENTALOperating Temperature:-20 ~ +50 (Refer to "Derating Curve")
    Storage Temp:-40 ~ 85
    Storage Humidity:20 ~ 95% RH
    Working Humidity:20 ~ 95% RH non-condensing
    PROTECTIONOver Load:Above 105%-130% rated output power
    Protection type: Hiccup mode, recovers automatically after fault condition is removed
    Over Voltage:12V:13.8 ~ 16.2V 24V : 27.6 ~ 32.4V
    36V:41.4 ~ 48.6V 48V:55.2~64.8V
    Protection type: Shut down o/p voltage, re-power on to recover
    Over Temperature:Shut down o/p voltage, re-power on to recover
    SAFETY & EMCSafety Regulations:EN61347-2-13:2014+A1:2017,EN61347-1:2015;EN62493:2015
    Withstand Voltage:I/P-O/P:3.75KVAC
    HarmonicEN61000-3-2 Class C EN61000-3-3
    EMI:Compliance to EN55015
    EMS:compliance to 61547:2009
    OTHERMTBF:200,000 Hours Minimum at Full Load at 25 Ambient
    Size:180*40*18mm
    Weight:850g / pcs
    Packaging:20PCS/CTN
