    APS250 UL UKCA Certified 250W Max 12V 48Vdc Switching Power Supply 24V AC/DC Adapter

    Ask Lasest Price
    Brand Name : ANENpower
    Model Number : APS250
    Certification : UL/CUL, FCC, CE, GS, TUV, CB, RCM, SAA, PSE, KC, UKCA
    Payment Terms : 50% deposit, 50% before dispatch
    Supply Ability : 500,000.00pcs/month
    Delivery Time : 18~25 working days after receiving the deposit
    Price : Please contact our Sales
    • Product Details
    • Company Profile

    APS250 UL UKCA Certified 250W Max 12V 48Vdc Switching Power Supply 24V AC/DC Adapter

    APS250 UL UKCA Certified 250W Max 12V 48Vdc Switching Power Supply 24V AC/DC Adapter

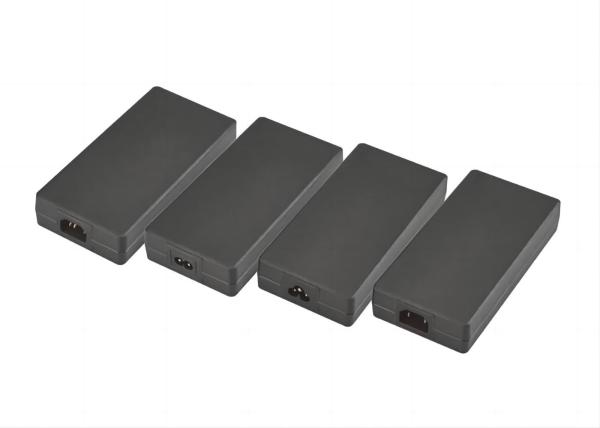

    APS250 is a 160~250W compact size highly reliable Desktop style single-output green adaptor series, which is compact and convenient for carry. APS250 is a class II power unit, accepting the input range from 100VAC to 240VAC. The whole series provides different models with output voltages ranging between 12VDC and 56VDC that it can satisfy the demands for various types of consumer electronic devices.


    APS250 is compliant with the lastest U.S energy regulation EISA 2007/DOE(Level VI), EU ErP and CoC version 5. The supreme feature allows the adaptor to save the energy when it is under either the operating mode or the standby mode. The entire series is approved for international safety regulations; moreover, it adopts the 94V-0 flame retardant plastic case that it can effectively prevent users from electric hazards.​


    1, LPS Compliance
    2, AC input power suitable for the world
    3, Energy Efficiency Level VI or CoC Tier II
    4, Over voltage, over current, short circuit and over load protection
    5, Per pieces adapter is 100% full load -burn in test (4 hours)
    6, All the products have passed the full load test process aging
    7, Low interference & noise
    8, Standard: EN/IEC 62368, EN/IEC 61558, EN/IEC 60601 or EN/IEC 61347
    9, Certification: UL, FCC, CB, GS, CE, PSE, SAA, RCM, UKCA


    Input Range100 to 240Vac, 50/60Hz
    Power Range160~250W max
    Output Range12 ~ 56V / 4.54A ~ 18.33A
    ProtectionOver load protection
    Over voltage protection
    Short circuit protection
    Safety ApprovalsUL/CUL, FCC, CE, GS, TUV, CB, RCM, SAA, PSE, KC, UKCA
    StandardEN/IEC 62368 / 61347 / 61558 / 60601 for your selection
    EfficiencyLevel VI
    AC plugEU / US / UK / AU and Others for your selection
    Standard DC Connector5.5*2.5 / 5.5*2.1 /5.5*1.7 / 4.8*1.7 / 4.0*1.7 / 3.5*1.35 / 6.3*3.0 with pin inside
    Operating Temperature Range0--40°C
    Storage Temperature Range-20 --- 85°C
    High Humidity Operation+ 40 °C and 90 ~ 95% Humidity
    Net weightAbout 1000g per unit
    MTBF100,000 hours
    ApplicationConsumer Electronic Devices · Telecommunication Devices · Office Facilities · Industrial Equipments
    PackingPE bag + Carton or White Box + Carton or As your Request

    MODEL No.MAX. OUTPUT
    POWER (W)
    OUTPUT
    VOLTAGE (Vo)
    MIN.
    LOAD (Io)
    MAX.
    LOAD (Io)
    LOAD
    REGULATION
    LINE
    REGULATION
    RIPPLE &
    NOISE
    APS250A160W12~18V0A13.33A± 5%± 1%300mV
    APS250B180W12~18V0A15A± 5%± 1%300mV
    APS250C180W19~28V0A9.47A± 5%± 1%350mV
    APS250D200W12~18V0A16.66A± 5%± 1%300mV
    APS250E200W19~28V0A10.52A± 5%± 1%350mV
    APS250F200W32~42V0A6.25A± 5%± 1%450mV
    APS250G200W44~56V0A4.54A± 5%± 1%600mV
    APS250H220W12~18V0A18.33A± 5%± 1%300mV
    APS250J220W19~28V0A11.57A± 5%± 1%350mV
    APS250K220W32~42V0A6.87A± 5%± 1%450mV
    APS250L220W44~56V0A5A± 5%± 1%600mV
    APS250M230W19~28V0A12.1A± 5%± 1%350mV
    APS250N230W32~42V0A7.18A± 5%± 1%450mV
    APS250P230W44~56V0A5.22A± 5%± 1%600mV
    APS250Q250W19~28V0A13.15A± 5%± 1%350mV
    APS250R250W32~42V0A7.81A± 5%± 1%450mV
    APS250S250W44~56V0A5.68A± 5%± 1%600mV
